Thin Brick - BrickTile Products


The Marion Ceramics BrickTile line offers an appealing and superior alternative to quarry tile, brick pavers, or concrete pavers. We use the finest clays, shale, and raw materials which are fine ground to produce our smooth wirecut texture. The wirecut texture is the perfect balance between ease of clean-up - smooth, yet optimum in slip-resistance even when wet. With our BrickTile, you can avoid the danger of slippery quarry tile as well as the rough characteristics of traditional brick pavers.

Our BrickTile are extruded under high vacuum and hard fired to produce our high-quality dense products. Our process results in our products having excellent physical characteristics - especially when compared to concrete pavers. Of course, to designers and owners, the aesthetics possible with our classic brick shape and beautiful colors are just as important as the technical excellence of our products.

BrickTile products are available in the modular brick shape (3 5/8" x 7 5/8") in either 9/16" or 15/16" thicknesses. This allows for BrickTile to be used anywhere ceramic tile is considered as well as installations which will have vehicular traffic where 15/16" materials set on slab provide an attractive and functional design opportunity.

BrickTile Colors


Marion's BrickTile products are available in a broad spectrum of fourteen beautiful colors - all of which are compatible for color coordinating and/or contrasting design statements. Our palette of colors includes eight clear tones and one ironspot which make up our BrickTile Classics colors. The balance of five colors makes up our BrickTile Rustics colors, which are all naturally flashed using reduction firing techniques perfected over many years. You never have to worry that your job will have the artificial look you get with chemical flashes used for quarry tile. Also, you can rest assured the hard-fired colors of our BrickTile are colorfast and will not fade with exposure to sunlight and weather like pigmented concrete pavers. Perhaps more importantly, you can bank on Marion Ceramics to take the extra care required to properly formulate each body and to double mix during grinding in order to maintain color consistency. Finally, designers will be pleased to know Marion Ceramics offers factory blending of Tumbled BrickTile, which means any color blend imaginable is available for your special jobs.

* Due to variations in photography and in online digital images, final color selections should be made from actual product samples prior to purchase.



* Recently Added color - 710 Seashell

*Recently added - 710 Seashell

*Recently added - 710 Seashell

BrickTile Classics

Marion's BrickTile Classics colors have been developed over many years to fill the needs of architects and designers. Care is taken to produce a wide range of attractive and pleasing colors to provide unmatched and unlimited design possibilities.

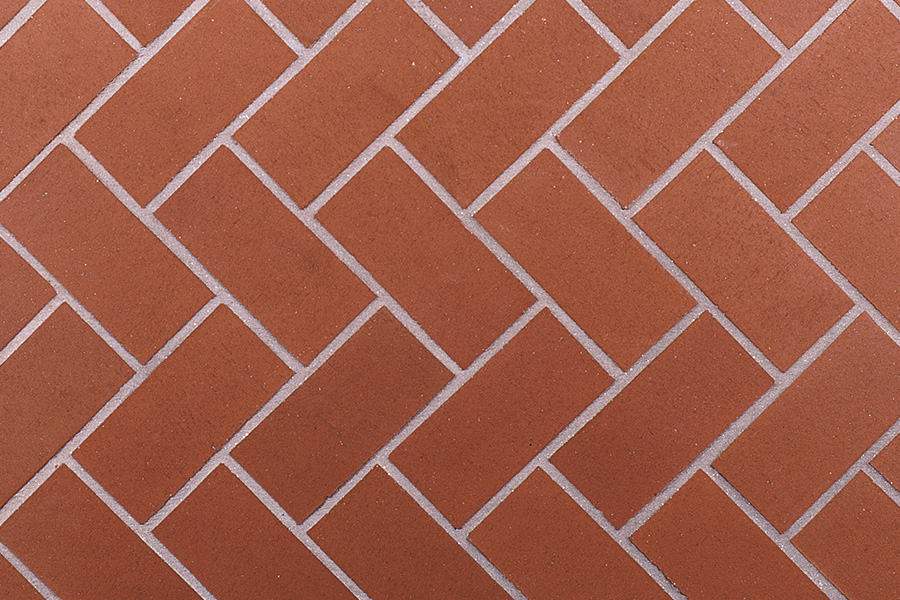

200 Plantation Red

200 Plantation Red

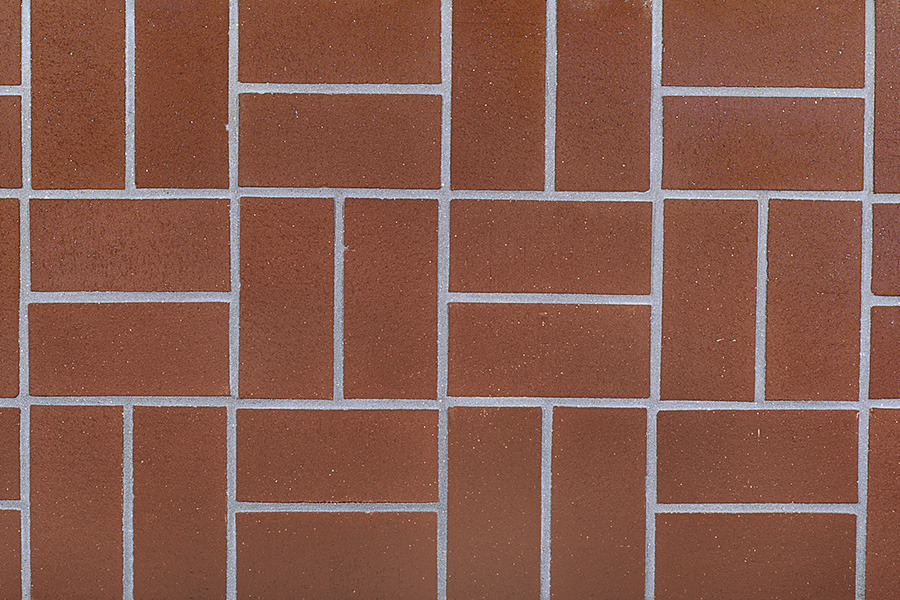

250 Havana Red

250 Havana Red

We start with traditional brick colors including two reds: our Plantation Red (200) - which is exceptionally vivid and clear - along with Havana Red (250), having reddish-brown tones - a popular match to many residential face brick. It was only natural to offer a chocolate brown color we call Gunstock Brown (410). We then introduced light burning raw materials to perfect our buff color Chino (600) and our terra cotta Sunlit Earth (610) which is also the base body used to produce the Indian Copper (615) ironspot color.

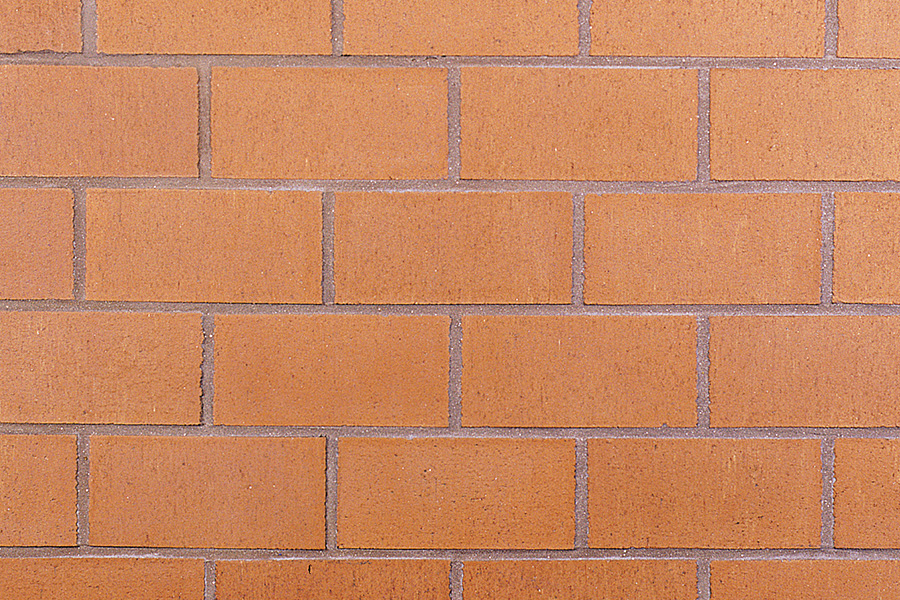

610 Sunlit Earth

610 Sunlit Earth

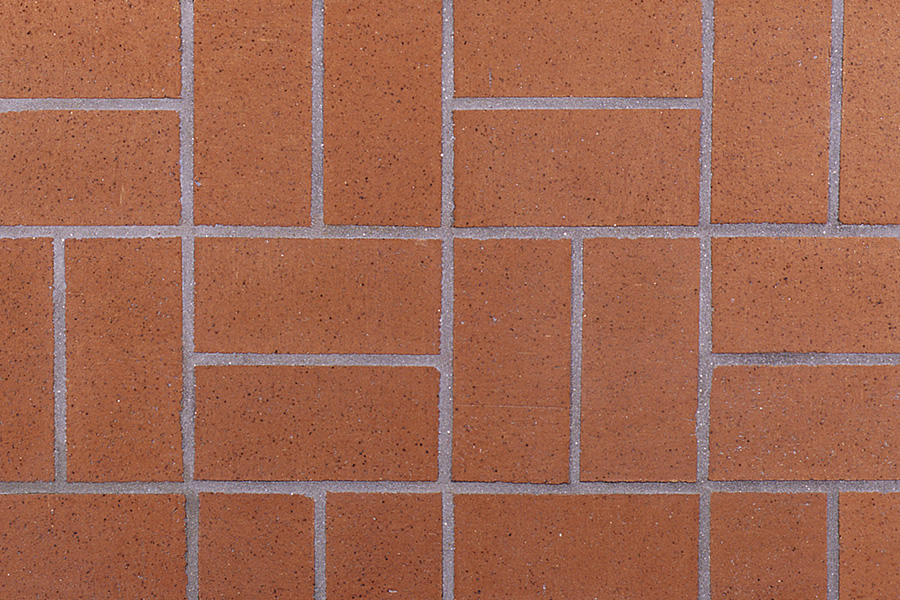

615 Indian Copper

615 Indian Copper

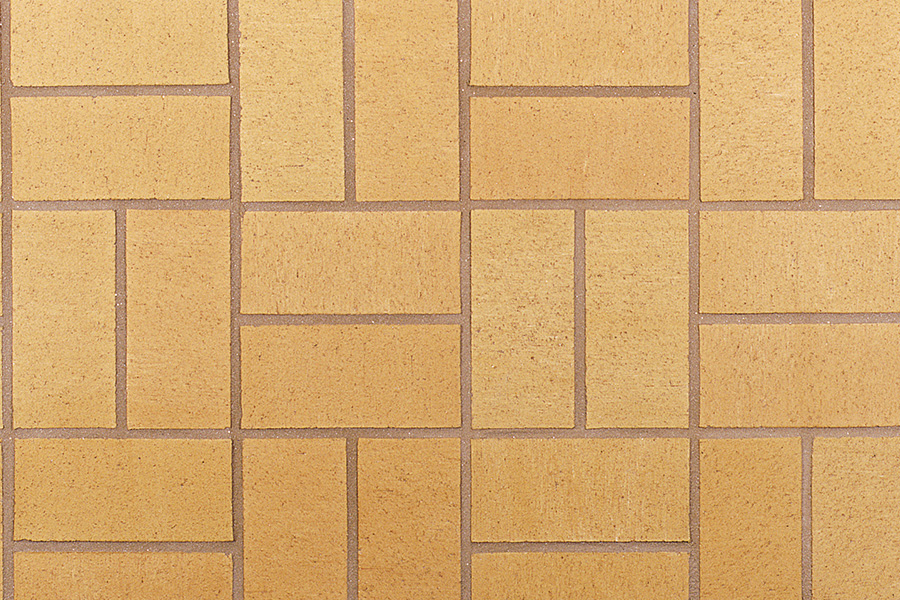

600 Chino

600 Chino

The balance of our BrickTile Classics colors consists of three of the most beautiful architectural brick colors, including our tan-Sahara (820) and two grays: Academy Grey (760) and Cobblestone (510).

Overall, an exceptional range of colors to mix or match on any project - residential or commercial. These colors have proven to be especially attractive when used in combination whether as blends or borders to provide any look desired.

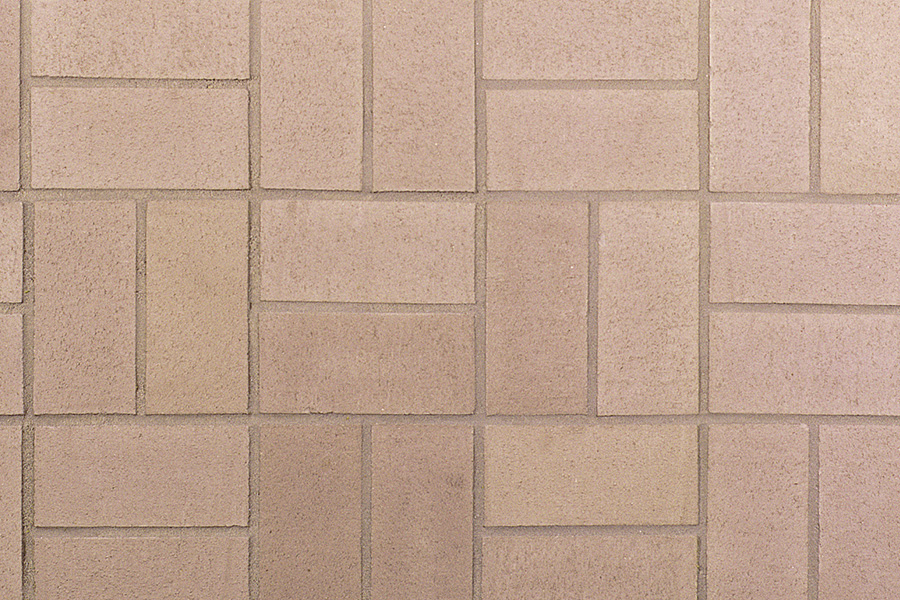

510 Cobblestone

510 Cobblestone

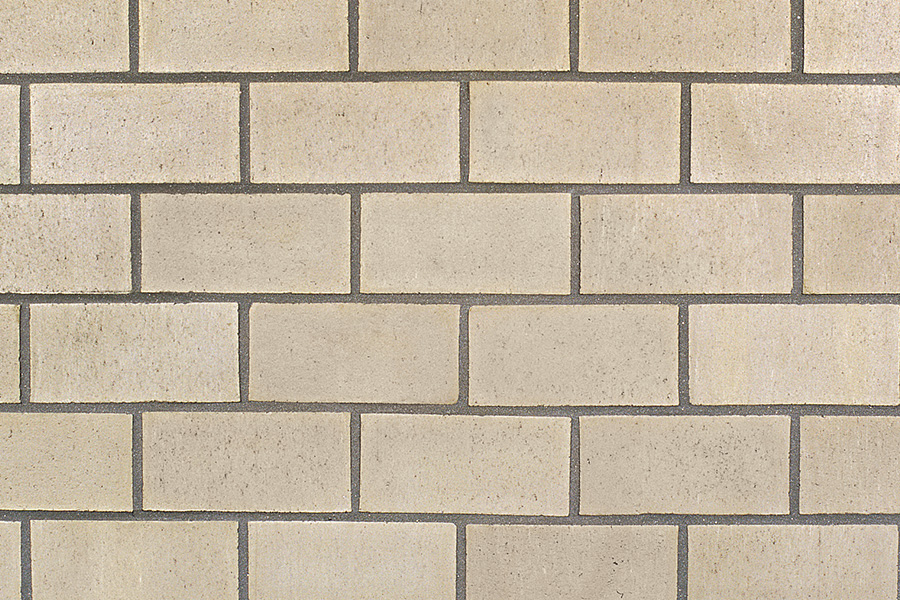

760 Academy Grey

760 Academy Grey

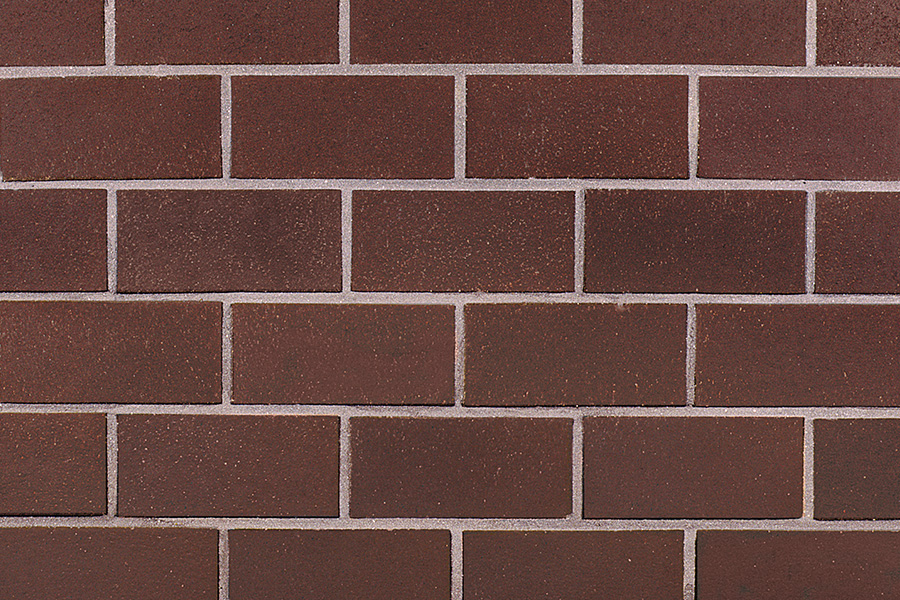

410 Gunstock Brown

410 Gunstock Brown

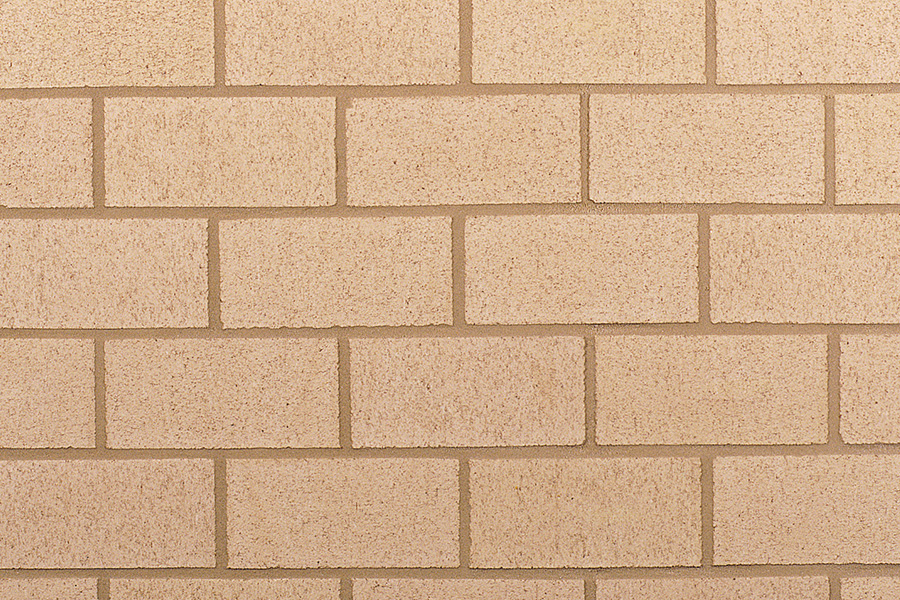

820 Tan Sahara

820 Tan Sahara

BrickTile Rustics

All of Marion Ceramic's BrickTile Rustics colors are natural gas flashed and made from the same body formulas used in their matching clear tone colors. The resulting variegated tones make for a special warmth and rustic feel that can only be achieved with natural materials.

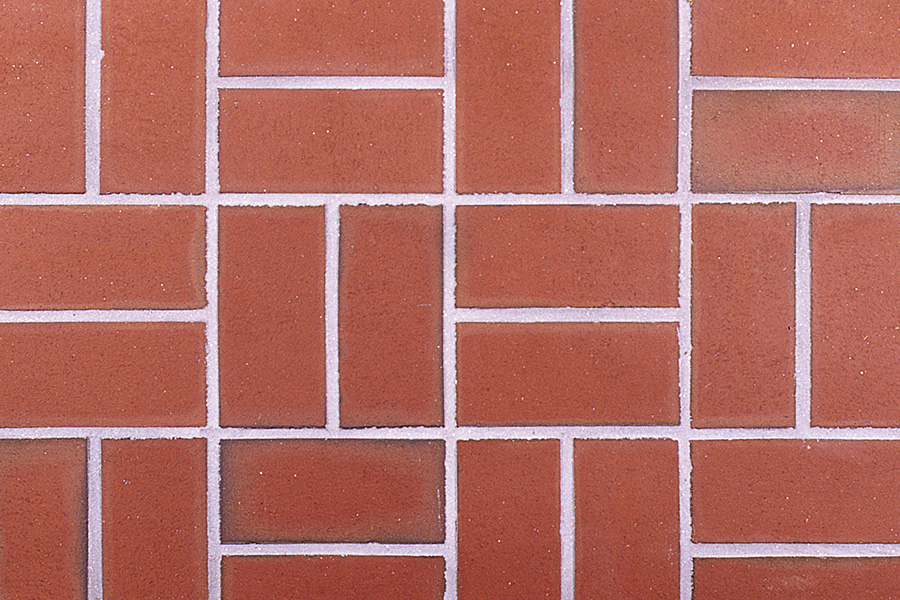

300 Tavern Flash

300 Tavern Flash

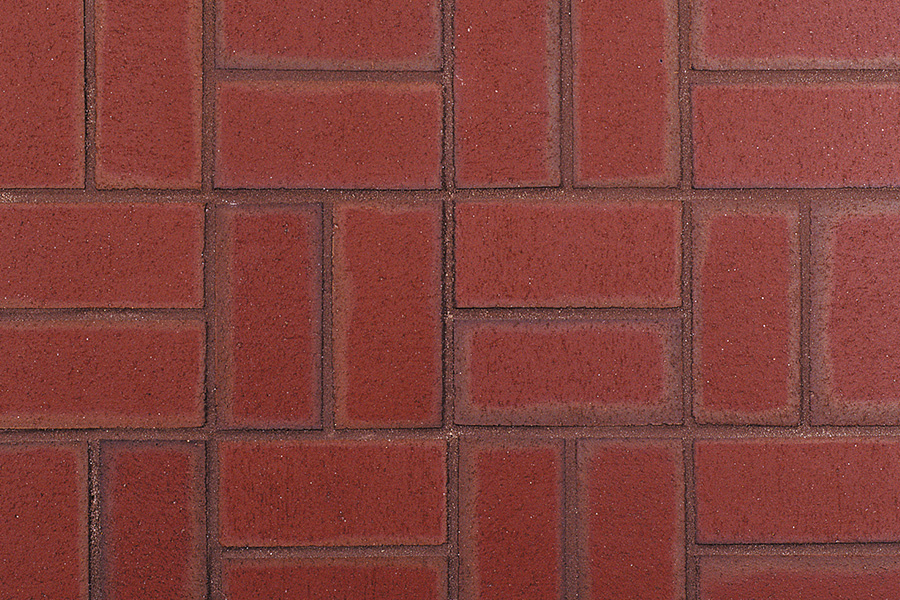

255 Magnum Flash

255 Magnum Flash

Our two reds are flashed to produce the Tavern Flash (300) and Magnum Flash (255) colors. Our brown flash is called Colonial Blend (440). The Sundance (655) color is made with our buff body, and Tangier (675) color is fired from our terra cotta body.

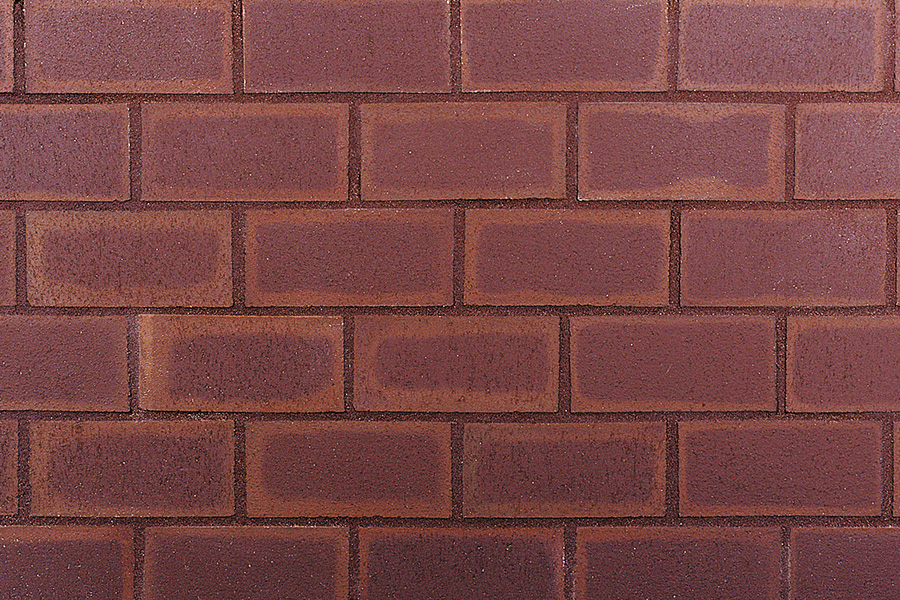

440 Colonial Blend

440 Colonial Blend

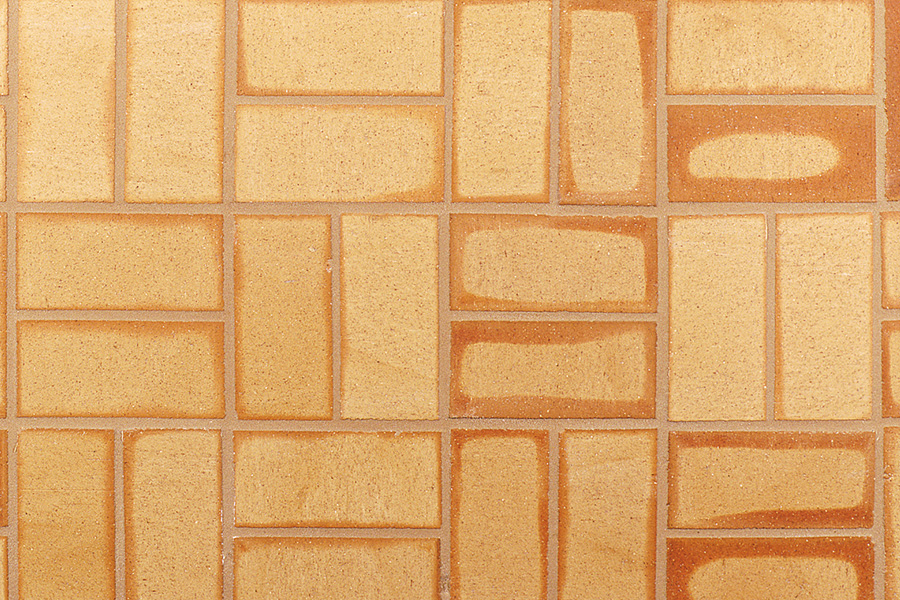

655 Sundance

655 Sundance

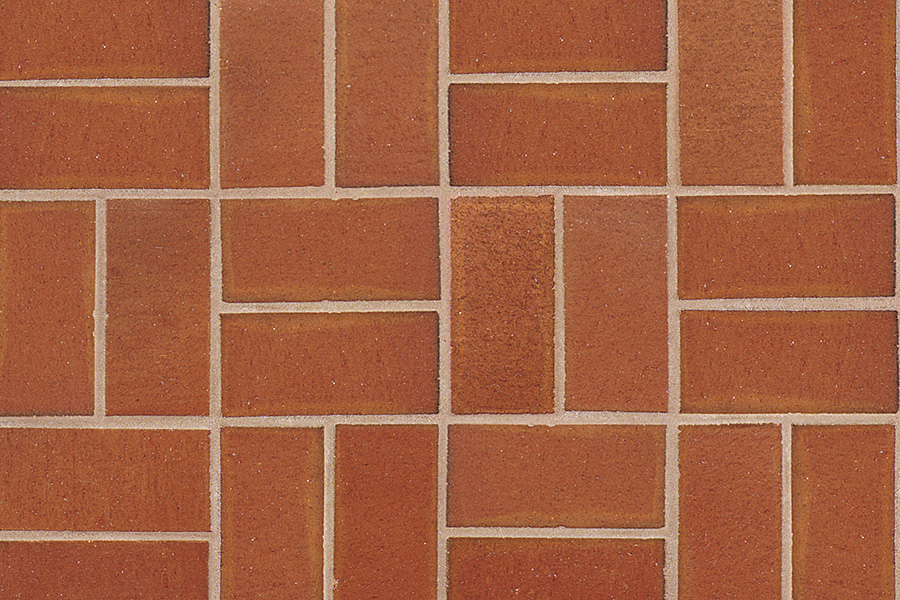

675 Tangier

675 Tangier

All of our colors are compatible with similarly colored residential face brick and work well with architectural and commercial projects using brick or other facing materials.

Failure to follow recommendations will void Marion Ceramics' warranty.

BrickTile Patterns


Basketweave

Basketweave

Basketweave Variation 1

Basketweave Variation 1

Basketweave Variation 2

Basketweave Variation 2

Basketweave Variation 3

Basketweave Variation 3

Ladder Bond

Ladder Bond

Ladder Bond Basketweave

Ladder Bond Basketweave

Running Bond

Running Bond

Running Bond Variation 1

Running Bond Variation 1

Running Bond + Basketweave

Running Bond + Basketweave

Stock Bond

Stock Bond

Herringbone

Herringbone

BrickTile Features


Features

All of Marion Ceramic's BrickTile products are strapped in trays for ease of jobsite handling. All pallets are stretch wrapped prior to shipping. Matching bullnose trim is available including 8", 4" and corner units. Trim for 9/16" is kept in stock , 15/16" produced upon request.

Packaged for easy handling.

For pool and patio jobs, Marion's Coping product line is available in matching colors in five sizes.

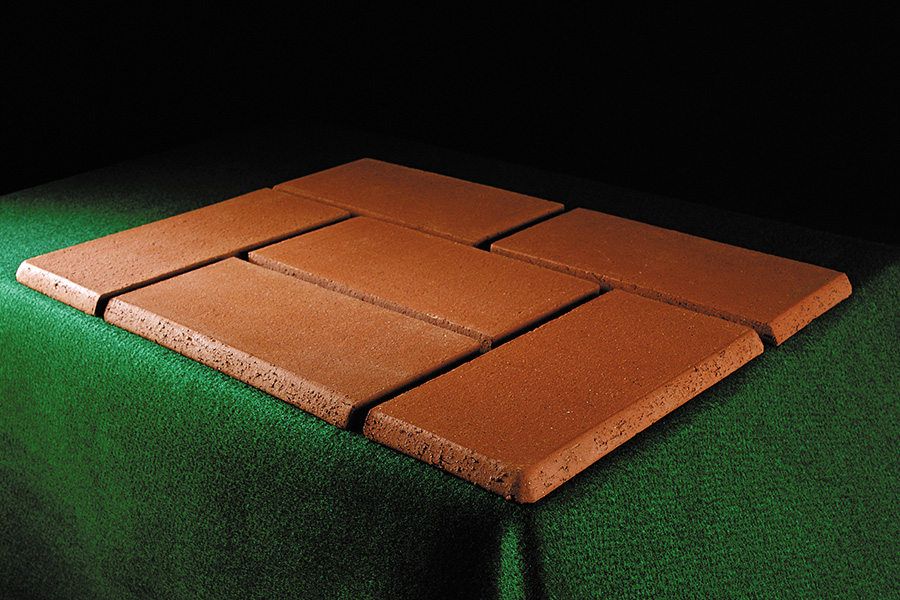

Surface bullnose trim available

Marion's BrickTile is the most complete and highest quality product line of its kind in the market place.

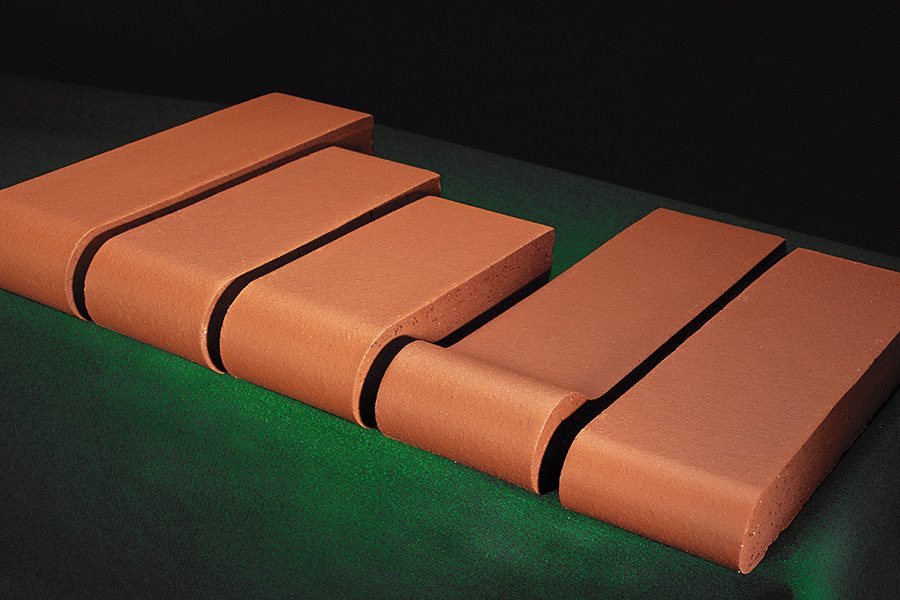

Matching pool coping available in five sizes

BrickTile Packaging


SizePCS
/Sq.Ft.*
PCS
/Carton
Sq.Ft
/Carton
PCS
/Pallet
Sq.Ft
/Pallet
WT
/Carton**
WT
/Pallet***
3 5/8" x 7 5/8" x 9/16" 4.5 28 6.22 2,240 497.6 33.41 lbs 2,673 lbs
3 5/8" x 7 5/8" x 15/16" 4.5 17 3.78 1,360 302.2 34.75 lbs 2,760 lbs

*Pcs / Sq Ft always assumes a 3/8" joint.
** Weights vary due to moisture and body formulations
*** Add 56 #'s for the pallet


Trim Packaging Data

SIZEPCS/CARTON
4" Bullnose x 9/16" 28
8" Bullnose x 9/16" 28
Surface Corners (sold in pairs) 28 = 14 prs







BrickTile Recommendations


In order to ensure your complete satisfaction with our BrickTile, it is very important that installers and owners comply with the following suggestions:

Shading

Color variations are a natural characteristic of all fired clay products and are inherent in our BrickTile. At the job site, we recommend mixing BrickTile from several cartons to provide a natural blend of color shades. For jobs requiring more than one pallet, blending from cartons from each pallet is recommended. Our clear tone colors will have a slight range of color. Our flashed colors will have a broader range of colors. Do not install any BrickTile which is not satisfactory in every way!

Installation

Our BrickTile products should be installed in the same way as unglazed ceramic tile. Please consult the latest edition of the Handbook for Ceramic Tile Installation. published by the Tile Council of North America. Please note the importance of having a clean, flat, sound substrate to set BrickTiles and make sure to provide all expansion joints required for proper engineering.

Grout Joints

Our BrickTile will vary in size more than quarry tile, especially ground edge products. We recommend a 3/8" grout joint for our BrickTile. This will allow our BrickTile to be set in all popular patterns and avoid the problems which will result when using smaller grout joints. Racks should be fabricated using samples of the production run of the actual BrickTile to be installed.

Before Grouting

We recommend that an appropriate grout release product is used prior to grouting. This procedure will make final cleanup easier. In addition, after grouting and final cleanup, we recommend our BrickTile and grout joints be resealed - especially for interior jobs.

Maintenance

After BrickTiles are grouted, final cleaning should be done with sulfamic acid crystals, or a factory premixed brick cleaner, followed by complete neutralization with clean, clear water.

Due to variations in photography, digital imaging, and printing processes, final color selections should be determined based on actual product samples prior to purchase. Image colors displayed on this web site may not properly represent actual colors of products due to differences in viewing devices, display settings, and hardware capabilities.

BrickTile Photo Gallery


Thin Brick Pavers - 300 Tavern Flash BrickTile

Thin Brick Pavers - 300 Tavern Flash BrickTile

Product: 300 Tavern Flash
Product Group: BrickTile
Thin Brick Pavers - 255 Mangum Flash BrickTile

Thin Brick Pavers - 255 Mangum Flash BrickTile

Product: 255 Magnum Flash
Product Group: BrickTile
Thin Brick Pavers - 655 Sundance BrickTile

Thin Brick Pavers - 655 Sundance BrickTile

Product: 655 Sundance
Accent 250 Havana Red
Product Group: BrickTile
Thin Brick Pavers - 655 Sundance 2 BrickTile

Thin Brick Pavers - 655 Sundance 2 BrickTile

Product: 655 Sundance, 250 Havana Red
Product Group: BrickTile
Thin Brick Pavers - 200 Plantation Red BrickTile

Thin Brick Pavers - 200 Plantation Red BrickTile

Product: 200 Plantation Red
Product Group: BrickTile
Thin Brick Pavers - 300 Tavern Flash BrickTile 2

Thin Brick Pavers - 300 Tavern Flash BrickTile 2

Product: 300 Tavern Flash,
Steps - 250 Havana Red
Product Group: BrickTile
Thin Brick Pavers - Custom Artistic Blend Bricktile

Thin Brick Pavers - Custom Artistic Blend Bricktile

Product: 300 Tavern Flash, 410 Gunstock Brown, 820 Sahara
Product Group: BrickTile
Thin Brick Pavers - 300 Tavern Flash, 440 Colonial Brown BrickTile

Thin Brick Pavers - 300 Tavern Flash, 440 Colonial Brown BrickTile

Product: 300 Tavern Flash,
440 Colonial Brown
Product Group: BrickTile
Thin Brick Pavers - 300 Tavern Flash BrickTile - Herringbone Pattern

Thin Brick Pavers - 300 Tavern Flash BrickTile - Herringbone Pattern

Product: 300 Tavern Flash
Product Group: BrickTile
Thin Brick Pavers - 300 Tavern Flash BrickTile 2 BFT

Thin Brick Pavers - 300 Tavern Flash BrickTile 2 BFT

Product: 300 Tavern Flash
Product Group: BrickTile
Photo courtesy of brick-floor-tile.com
Thin Brick Pavers - 255 Magnum Flash BrickTile - BFT

Thin Brick Pavers - 255 Magnum Flash BrickTile - BFT

Product: 255 Magnum Flash
Product Group: BrickTile
Photo courtesy of brick-floor-tile.com
Thin Brick Pavers - 255 Magnum Flash BrickTile - 2 BFT

Thin Brick Pavers - 255 Magnum Flash BrickTile - 2 BFT

Product: 255 Magnum Flash
Product Group: Tumbled BrickTile
Photo courtesy of brick-floor-tile.com
Thin Brick Pavers - Custom Blend BrickTile - BFT

Thin Brick Pavers - Custom Blend BrickTile - BFT

Product: 300 Tavern Flash
Product Group: BrickTile
Photo courtesy of brick-floor-tile.com
Thin Brick Pavers - 250 Magnum Flash BrickTile - BFT

Thin Brick Pavers - 250 Magnum Flash BrickTile - BFT

Product: 255 Magnum Flash
Product Group: BrickTile
Photo courtesy of brick-floor-tile.com
Thin Brick Pavers - 250 Magnum Flash BrickTile - 2 BFT

Thin Brick Pavers - 250 Magnum Flash BrickTile - 2 BFT

Product: 255 Magnum Flash
Product Group: BrickTile
Photo courtesy of brick-floor-tile.com
Thin Brick Pavers - 250 Magnum Flash BrickTile - 3 BFT

Thin Brick Pavers - 250 Magnum Flash BrickTile - 3 BFT

Product: 255 Magnum Flash
Product Group: BrickTile
Photo courtesy of brick-floor-tile.com

For Additional Information about our Products or Pricing, Contact a Dealer in your Area.
